Reuse Patterns: QKernel Composition and Composite Gates

As circuits grow, you want to avoid copy-pasting gate sequences. Qamomile offers two complementary reuse mechanisms:

Helper QKernel — call one @qkernel from another, like normal function composition.
@composite_gate — promote a qkernel to a named gate with customizable settings that appears as a single box in diagrams.

There is also a third pattern for top-down design:

Stub composite gate — a gate with no implementation body, used for resource estimation. For example, if you are designing a Grover search algorithm, you know the oracle will use ~40 T-gates, but you haven’t implemented it yet. A stub composite gate lets you estimate the total cost of the algorithm without the full oracle implementation.

# Install the latest Qamomile through pip!
# !pip install qamomile

import math

import qamomile.circuit as qmc
from qamomile.circuit.ir.operation.composite_gate import ResourceMetadata
from qamomile.qiskit import QiskitTranspiler

transpiler = QiskitTranspiler()

Pattern 1: Helper QKernel¶

Any @qkernel function can be called from another @qkernel. The transpiler inlines the call — the result is a flat circuit.

@qmc.qkernel
def entangle_once(q0: qmc.Qubit, q1: qmc.Qubit) -> tuple[qmc.Qubit, qmc.Qubit]:
    q0, q1 = qmc.cx(q0, q1)
    return q0, q1


@qmc.qkernel
def ghz_with_helper(n: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(n, name="q")
    q[0] = qmc.h(q[0])

    for i in qmc.range(n - 1):
        q[i], q[i + 1] = entangle_once(q[i], q[i + 1])

    return qmc.measure(q)

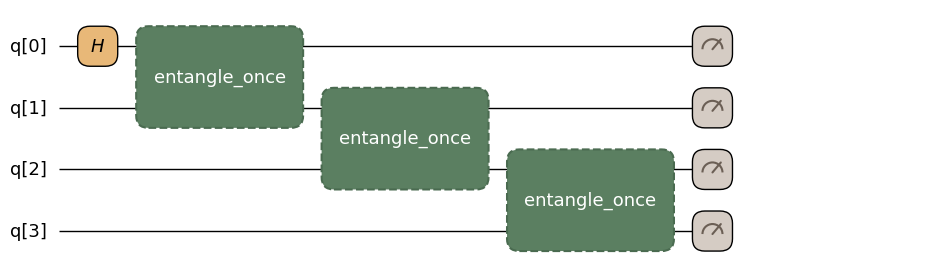

ghz_with_helper.draw(n=4, fold_loops=False)

result = (
    transpiler.transpile(ghz_with_helper, bindings={"n": 4})
    .sample(
        transpiler.executor(),
        shots=128,
    )
    .result()
)
print("GHZ result:", result.results)

GHZ result: [((0, 0, 0, 0), 79), ((1, 1, 1, 1), 49)]

The helper entangle_once keeps the call site readable. In the transpiled circuit, it is inlined — you see individual CX gates, not a sub-block.

qc = transpiler.to_circuit(ghz_with_helper, bindings={"n": 4})
print(qc.draw())

     ┌───┐          ┌─┐
q_0: ┤ H ├──■───────┤M├──────────────
     └───┘┌─┴─┐     └╥┘     ┌─┐
q_1: ─────┤ X ├──■───╫──────┤M├──────
          └───┘┌─┴─┐ ║      └╥┘┌─┐
q_2: ──────────┤ X ├─╫───■───╫─┤M├───
               └───┘ ║ ┌─┴─┐ ║ └╥┘┌─┐
q_3: ────────────────╫─┤ X ├─╫──╫─┤M├
                     ║ └───┘ ║  ║ └╥┘
c: 4/════════════════╩═══════╩══╩══╩═
                     0       1  2  3

Passing scalar literals to helpers¶

When a helper qkernel declares a scalar parameter (UInt, Float, or Bit), you can pass a raw Python literal at the call site — Qamomile auto-promotes int to UInt, float to Float, and bool to Bit. Writing helper(q, 0, 0.5) is equivalent to helper(q, qmc.uint(0), qmc.float_(0.5)). Use the explicit qmc.uint / qmc.float_ / qmc.bit constructors only when you want to name the value or share it across multiple call sites.

@qmc.qkernel
def rotate_first(
    q: qmc.Vector[qmc.Qubit],
    idx: qmc.UInt,
    angle: qmc.Float,
) -> qmc.Vector[qmc.Qubit]:
    q[idx] = qmc.ry(q[idx], angle)
    return q


@qmc.qkernel
def helper_with_literals(n: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(n, name="q")
    q = rotate_first(q, 0, 0.5)  # int and float literals are accepted directly
    return qmc.measure(q)

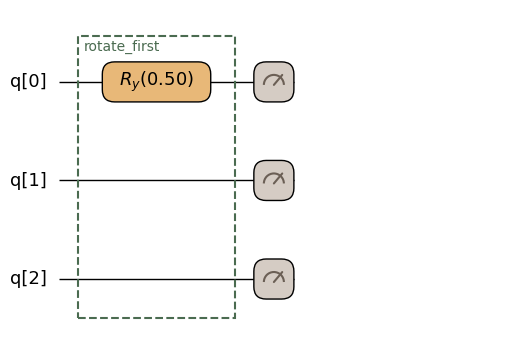

helper_with_literals.draw(n=3, fold_loops=False, inline=True)

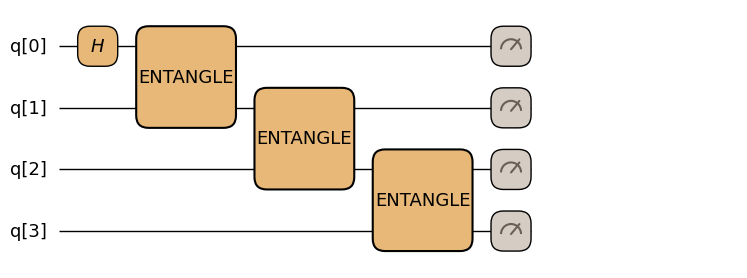

Pattern 2: `@composite_gate`¶

When you want a reusable block to appear as a named box in circuit diagrams, promote it with @composite_gate. Also, as a more advanced use case, making it a composite gate allows you to give it custom settings such as giving it multiple ways of implementation.

Stack @composite_gate(name="...") on top of @qkernel:

@qmc.composite_gate(name="entangle")
@qmc.qkernel
def entangle_link(q0: qmc.Qubit, q1: qmc.Qubit) -> tuple[qmc.Qubit, qmc.Qubit]:
    q0, q1 = qmc.cx(q0, q1)
    return q0, q1


@qmc.qkernel
def ghz_with_composite(n: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(n, name="q")
    q[0] = qmc.h(q[0])

    for i in qmc.range(n - 1):
        q[i], q[i + 1] = entangle_link(q[i], q[i + 1])

    return qmc.measure(q)

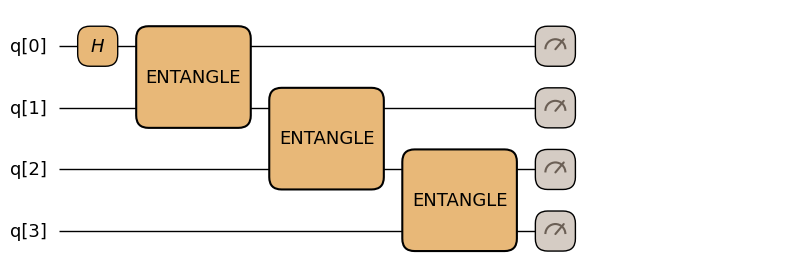

ghz_with_composite.draw(n=4, fold_loops=False)

When to use which?¶

Pattern	Appears in `draw()`	Use when
Helper `@qkernel`	Inlined (flat)	Code organization
`@composite_gate`	Named box	Domain-level abstraction/advanced settings

Pattern 3: Stub Composite Gate for Top-Down Design¶

Sometimes you want to design an algorithm’s structure before implementing every sub-component. A stub composite gate has no implementation body — just a name, qubit count, and optional resource metadata.

This lets you estimate the cost of the overall algorithm while the oracle or sub-routine is still under development.

To use a stub composite gate, specify stub=True in the @composite_gate decorator. At the same time, you can also give it resource information as ResourceMetadata.

@qmc.composite_gate(
    stub=True,
    name="oracle",
    num_qubits=3,
    resource_metadata=ResourceMetadata(
        query_complexity=1,
        t_gates=40,
    ),
)
def oracle_box():
    pass


@qmc.qkernel
def algorithm_skeleton() -> qmc.Vector[qmc.Qubit]:
    q = qmc.qubit_array(3, name="q")
    for i in qmc.range(3):
        q[i] = qmc.h(q[i])

    q[0], q[1], q[2] = oracle_box(q[0], q[1], q[2])
    return q

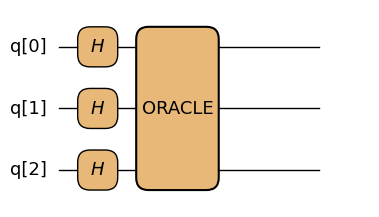

algorithm_skeleton.draw(fold_loops=False)

Resource Estimation for QKernels that Include Stub Gates¶

estimate_resources() can analyze a full qkernel even when oracle internals are unknown. Known scaffold gates are counted directly, and stub components are tracked through est.gates.oracle_calls / est.gates.oracle_queries.

est = algorithm_skeleton.estimate_resources().simplify()
print("qubits:", est.qubits)
print("total gates:", est.gates.total)

qubits: 3
total gates: 3

Next, we build a qkernel that mixes ordinary gates with multiple stub oracles.

@qmc.composite_gate(
    stub=True,
    name="phase_oracle",
    num_qubits=3,
    resource_metadata=ResourceMetadata(query_complexity=2),
)
def phase_oracle():
    pass


@qmc.composite_gate(
    stub=True,
    name="mixing_oracle",
    num_qubits=3,
    resource_metadata=ResourceMetadata(query_complexity=1),
)
def mixing_oracle():
    pass


@qmc.qkernel
def iterative_oracle_skeleton(rounds: qmc.UInt) -> qmc.Vector[qmc.Qubit]:
    q = qmc.qubit_array(3, name="q")

    # Known scaffold (non-oracle) gates
    q[0] = qmc.h(q[0])
    q[1] = qmc.h(q[1])
    q[0], q[1] = qmc.cx(q[0], q[1])

    # One oracle call outside the loop
    q[0], q[1], q[2] = phase_oracle(q[0], q[1], q[2])

    # Each round mixes known gates and unknown oracle blocks
    for i in qmc.range(rounds):
        q[1] = qmc.ry(q[1], 0.3)
        q[1], q[2] = qmc.cx(q[1], q[2])
        q[0], q[1], q[2] = phase_oracle(q[0], q[1], q[2])
        q[0], q[1], q[2] = mixing_oracle(q[0], q[1], q[2])
        q[1], q[2] = qmc.cx(q[1], q[2])

    return q

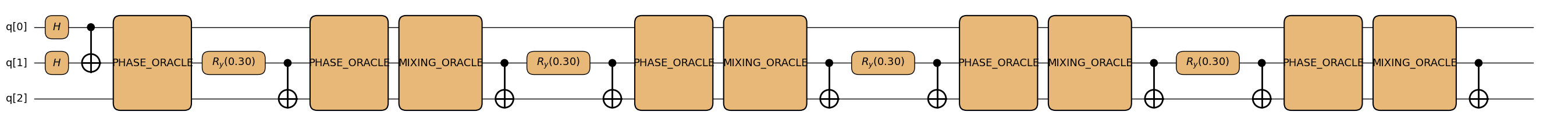

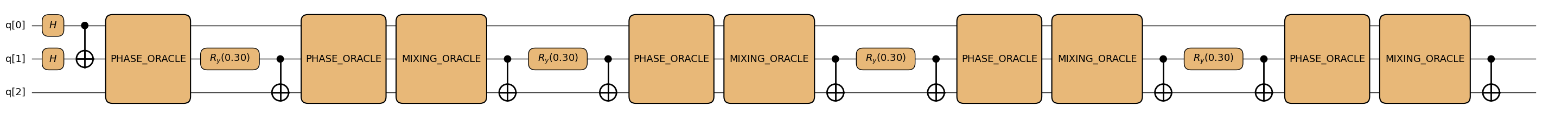

iterative_oracle_skeleton.draw(rounds=4, fold_loops=False)

oracle_est = iterative_oracle_skeleton.estimate_resources().simplify()
print("total gates:", oracle_est.gates.total)
print("two-qubit gates:", oracle_est.gates.two_qubit)
print("oracle_calls:", oracle_est.gates.oracle_calls)
print("oracle_queries:", oracle_est.gates.oracle_queries)

total gates: 3*rounds + 3
two-qubit gates: 2*rounds + 1
oracle_calls: {'phase_oracle': rounds + 1, 'mixing_oracle': rounds}
oracle_queries: {'phase_oracle': 2*rounds + 2, 'mixing_oracle': rounds}

Substitute a concrete value for rounds to get numeric counts:

oracle_est_4 = oracle_est.substitute(rounds=4)
print("oracle_calls (rounds=4):", oracle_est_4.gates.oracle_calls)
print("oracle_queries (rounds=4):", oracle_est_4.gates.oracle_queries)

oracle_calls (rounds=4): {'phase_oracle': 5, 'mixing_oracle': 4}
oracle_queries (rounds=4): {'phase_oracle': 10, 'mixing_oracle': 4}

In this example, resource analysis works without oracle internals: known gates contribute to total / two_qubit, while unknown oracle blocks are tracked as oracle_calls (for example, {'phase_oracle': rounds + 1, 'mixing_oracle': rounds}) and oracle_queries (weighted by each stub’s query_complexity).

This lets you reason about algorithm-level costs (such as qubit count, oracle queries) before committing to a full decomposition.

Pattern 4: Controlling a Built-in Gate¶

When you only need a controlled version of a single primitive gate (qmc.rx, qmc.h, qmc.cp, ...), qmc.controlled accepts the built-in gate function directly — no @qkernel wrapper required. The keyword for any classical parameter follows the underlying gate’s own parameter name (e.g. angle= for qmc.rx / qmc.ry, theta= for qmc.p / qmc.cp).

Before — boilerplate wrapper:

@qmc.qkernel
def _rx_gate(q: qmc.Qubit, theta: qmc.Float) -> qmc.Qubit:
    return qmc.rx(q, theta)

crx = qmc.controlled(_rx_gate)

After — wrap directly:

crx = qmc.controlled(qmc.rx)

@qmc.qkernel
def controlled_rx_demo() -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(2, name="q")
    # Drive the control to |1> so the controlled rotation fires.
    q[0] = qmc.x(q[0])
    crx = qmc.controlled(qmc.rx)
    q[0], q[1] = crx(q[0], q[1], angle=math.pi)
    return qmc.measure(q)


controlled_rx_demo.draw()

Multi-control and the power parameter work the same as for any controlled(...) factory — num_controls and power are properties of the ControlledGate rather than of the wrapped function, so nothing extra is needed:

@qmc.qkernel
def toffoli_via_builtin() -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(3, name="q")
    q[0] = qmc.x(q[0])
    q[1] = qmc.x(q[1])
    ccx = qmc.controlled(qmc.x, num_controls=2)
    q[0], q[1], q[2] = ccx(q[0], q[1], q[2])
    return qmc.measure(q)

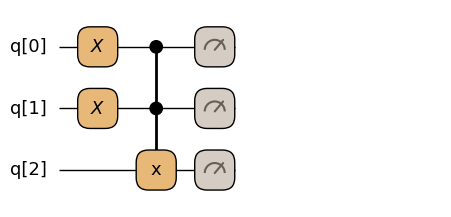

toffoli_via_builtin.draw()

Existing @qmc.qkernel-wrapped arguments still work — the built-in form is purely additive. Reach for a hand-written @qkernel whenever the gate body needs more than a single primitive call (e.g. an H followed by an RX), since controlled of a multi-gate body is exactly what @qkernel is for:

@qmc.qkernel
def h_then_rx(q: qmc.Qubit, theta: qmc.Float) -> qmc.Qubit:
    q = qmc.h(q)
    q = qmc.rx(q, theta)
    return q


@qmc.qkernel
def controlled_pair_demo() -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(2, name="q")
    q[0] = qmc.x(q[0])
    cg = qmc.controlled(h_then_rx)
    q[0], q[1] = cg(q[0], q[1], theta=math.pi / 4)
    return qmc.measure(q)


controlled_pair_demo.draw()

Summary¶

Helper @qkernel: call one qkernel from another for code reuse. The transpiler inlines the call into a flat circuit.
@composite_gate: gives a qkernel a named identity visible in diagrams. Stack @composite_gate on top of @qkernel.
Stub composite gate: stub=True with ResourceMetadata for top-down design and resource estimation without a full implementation.
est.gates.oracle_calls: even when oracle internals are unknown, this reports per-oracle call counts as a dict (including symbolic call counts).
qmc.controlled(builtin_gate): skip the one-line @qkernel wrapper when controlling a single primitive — pass qmc.rx, qmc.h, qmc.cp, etc. directly to the factory.
