Qamomile v0.10.0

Qamomile v0.10.0 is a ground-up rebuild of the quantum programming layer. This enables Qamomile to cover not only quantum optimization algorithm development — its original scope — but also general-purpose quantum program and algorithm development. The amount of changes from v0.9.0 is massive, so rather than listing what changed, this page describes what v0.10.0 can do.

See the tutorials for more details.

pip install qamomile==0.10.0

Frontend: `@qkernel`¶

The central API for writing quantum programs in Qamomile v0.10.0 is the @qkernel decorator. You write a normal Python function with type-annotated arguments and return values, and Qamomile traces it into an intermediate representation (IR) that can be analyzed, visualized, and transpiled. You don’t need to interact with the IR directly. Classical control flow such as for/while loops and if statements is also supported and traced into the IR.

The rules you must follow when writing a @qkernel are:

Type hints are required. Arguments and return types primarily use Qamomile’s types: Qubit, Bit, Float, UInt, Vector[T], Dict[K, V], Tuple[...].
Affine typing for qubits. A Qubit handle must be reassigned after every gate (q = qmc.h(q)).

Available gates include H, X, Y, Z, S, T, RX, RY, RZ, RZZ, CX, CZ, CCX, CP, SWAP, and more. Measurement is done with qmc.measure().

import qamomile.circuit as qmc


@qmc.qkernel
def ghz_state(
    n: qmc.UInt,
) -> qmc.Vector[qmc.Bit]:  # Type hints for arguments and return type
    q = qmc.qubit_array(
        n, name="q"
    )  # Allocate an array of n qubits with the given size and name

    q[0] = qmc.h(q[0])
    for i in qmc.range(1, n):  # Iterate over qubits 1 to n-1 using qmc.range
        q[0], q[i] = qmc.cx(q[0], q[i])

    return qmc.measure(q)

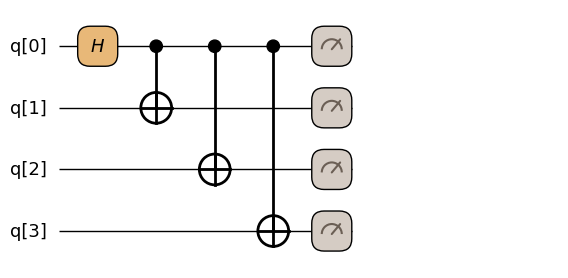

ghz_state.draw(n=4, fold_loops=False)

Resource Estimation¶

Qamomile v0.10.0 provides symbolic resource estimation. Call estimate_resources() on any qkernel to get qubit counts and gate breakdowns without executing the qkernel. These estimates are symbolic expressions in terms of the input parameters, so you can analyze how resources scale with problem size. You can also substitute specific values to get concrete estimates for a given input size. Furthermore, you can define implementation-free black-box oracles using the @composite_gate decorator with stub=True, and resource estimation is possible for qkernels that use them.

est = ghz_state.estimate_resources()
print("qubits:", est.qubits)
print("total two-qubit gates:", est.gates.two_qubit)

qubits: n
total two-qubit gates: n - 1

# Evaluate at a specific size
print("two-qubit gates at n=100:", est.substitute(n=100).gates.two_qubit)

two-qubit gates at n=100: 99

Multi-Quantum SDK Transpilation¶

Define your circuit once with @qkernel, then transpile to any supported quantum SDK. The transpiled qkernel becomes an ExecutableProgram for the target quantum SDK. Qamomile v0.10.0 includes preset executors for each quantum SDK, so you can execute without writing any target SDK code. These preset executors assume simulator execution. You can also create custom executors for finer control and access to actual quantum hardware.

Backend	Module	Transpiler	Default Execution
Qiskit	`qamomile.qiskit`	`QiskitTranspiler`	Local simulator
QURI Parts	`qamomile.quri_parts`	`QuriPartsTranspiler`	Local simulator
CUDA-Q	`qamomile.cudaq`	`CudaqTranspiler`	Local simulator

Furthermore, for Qiskit, qBraid execution is supported, enabling execution on cloud quantum devices.

Qiskit is included by default with pip install qamomile, but other quantum SDKs and qBraid execution require optional extra packages:

pip install "qamomile[cudaq-cu12]"   # CUDA-Q with CUDA 12.x (Linux)
pip install "qamomile[cudaq-cu13]"   # CUDA-Q with CUDA 13.x (Linux / macOS ARM64)
pip install "qamomile[quri_parts]"   # QURI Parts
pip install "qamomile[qbraid]"       # qBraid integration for Qiskit

from qamomile.qiskit import QiskitTranspiler

qiskit_transpiler = QiskitTranspiler()
qiskit_executable = qiskit_transpiler.transpile(ghz_state, bindings={"n": 4})
samples = qiskit_executable.sample(
    qiskit_transpiler.executor(),  # Specify the executor to run on
    shots=1024,
).result()

for outcome, count in samples.results:
    print(f"  outcome={outcome}, count={count}")

  outcome=(0, 0, 0, 0), count=517
  outcome=(1, 1, 1, 1), count=507

Standard Library¶

To help users write quantum algorithms easily, Qamomile v0.10.0 provides built-in algorithms in the qmc.stdlib and qmc.algorithm modules, including Quantum Fourier Transform (QFT), Quantum Phase Estimation (QPE), Quantum Approximate Optimization Algorithm (QAOA), and more. qmc.stdlib contains broadly used basic algorithm blocks, while qmc.algorithm contains more specialized algorithms; however, these categorizations are not strict and may change between releases.

We will keep on adding more algorithms to those modules, so stay tuned!

from qamomile.circuit.stdlib import qft


@qmc.qkernel
def qft_example() -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(4, name="q")
    q[0] = qmc.x(q[0])
    q = qft(q)
    return qmc.measure(q)

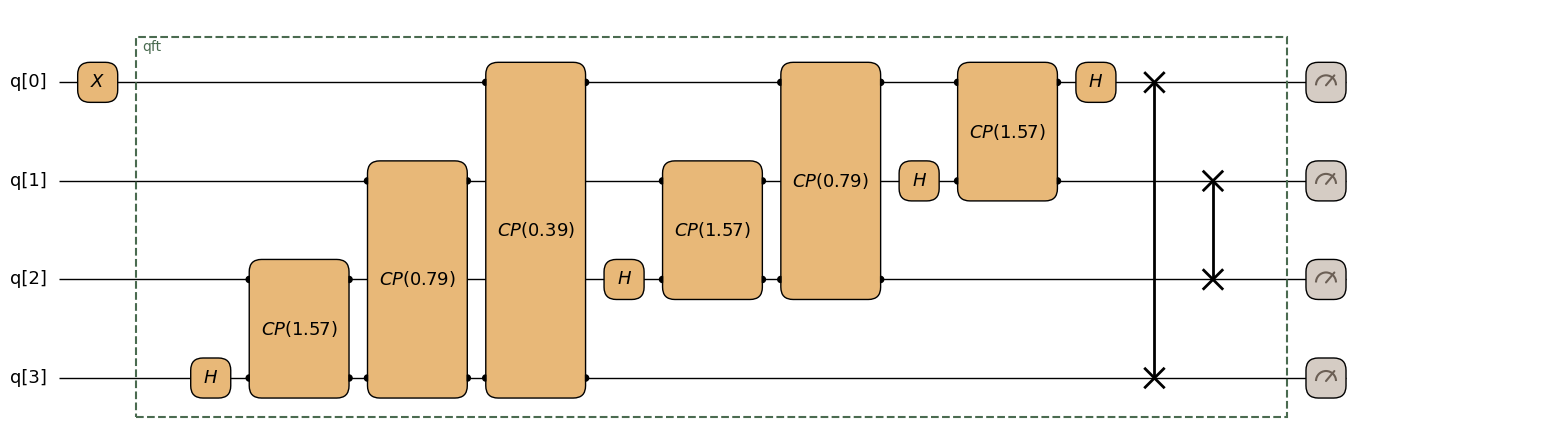

qft_example.draw(expand_composite=True)

Optimization Converters¶

The converters from v0.9.0 are available under qamomile.optimization, rewritten to use the new @qkernel-based circuit layer. They take a mathematical model (via JijModeling or OMMX) and produce a ready-to-run circuit.
