qmc.controlによるゲートと量子カーネルの制御

# Install the latest Qamomile from pip.
# !pip install qamomile

import math

import qamomile.circuit as qmc
from qamomile.circuit.transpiler.errors import UnreturnedBorrowError
from qamomile.qiskit import QiskitTranspiler

transpiler = QiskitTranspiler()

# 制御RXゲートを定義します。
crx = qmc.control(qmc.rx)

@qmc.qkernel
def crx_control_off() -> qmc.Bit:
    c = qmc.qubit(name="c")
    t = qmc.qubit(name="t")
    # 制御は|0>のままなので、制御回転は発火しません。
    c, t = crx(c, t, angle=math.pi)
    return qmc.measure(t)


crx_control_off.draw()

@qmc.qkernel
def crx_control_on() -> qmc.Bit:
    c = qmc.qubit(name="c")
    t = qmc.qubit(name="t")
    # 制御を|1>に立てるので、制御回転が発火します。
    c = qmc.x(c)
    c, t = crx(c, t, angle=math.pi)
    return qmc.measure(t)


crx_control_on.draw()

off_counts = dict(
    transpiler.transpile(crx_control_off)
    .sample(transpiler.executor(), shots=256)
    .result()
    .results
)
on_counts = dict(
    transpiler.transpile(crx_control_on)
    .sample(transpiler.executor(), shots=256)
    .result()
    .results
)
print("control |0> ->", off_counts)
assert off_counts == {0: 256}
print("control |1> ->", on_counts)
assert on_counts == {1: 256}

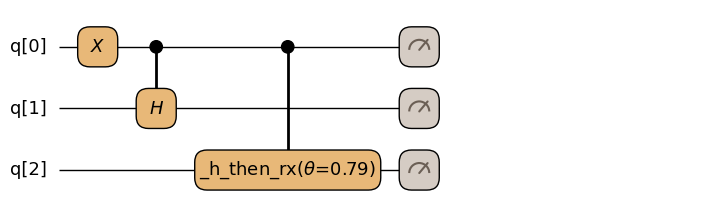

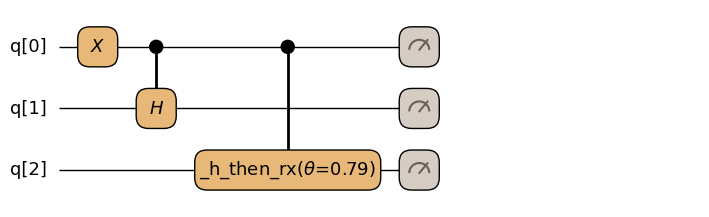

@qmc.qkernel
def _h_then_rx(q: qmc.Qubit, theta: qmc.Float) -> qmc.Qubit:
    q = qmc.h(q)
    q = qmc.rx(q, theta)
    return q


ch = qmc.control(qmc.h)
cg = qmc.control(_h_then_rx)

@qmc.qkernel
def control_any_callable_demo() -> qmc.Vector[qmc.Bit]:
    # q[0]は共通の制御。q[1] / q[2]は2つのtarget。
    q = qmc.qubit_array(3, "q")
    q[0] = qmc.x(q[0])
    q[0], q[1] = ch(q[0], q[1])
    q[0], q[2] = cg(q[0], q[2], theta=math.pi / 4)
    return qmc.measure(q)


control_any_callable_demo.draw()

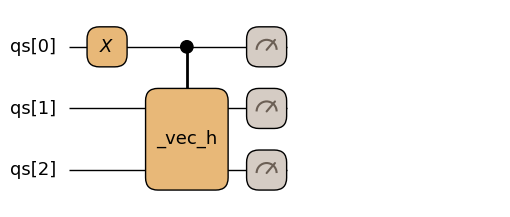

@qmc.qkernel
def _vec_h(qs: qmc.Vector[qmc.Qubit]) -> qmc.Vector[qmc.Qubit]:
    qs[0] = qmc.h(qs[0])
    qs[1] = qmc.h(qs[1])
    return qs


cg = qmc.control(_vec_h, num_controls=1)

@qmc.qkernel
def vec_target_demo() -> qmc.Vector[qmc.Bit]:
    qs = qmc.qubit_array(3, "qs")
    qs[0] = qmc.x(qs[0])
    qs[0], qs[1:3] = cg(qs[0], qs[1:3])
    return qmc.measure(qs)


vec_target_demo.draw()

@qmc.qkernel
def _phase(
    q: qmc.Qubit,
    # runtime: ``_create_bound_input`` は ``qmc.Float`` 引数のデフォルトに
    # 生の ``float`` を受けて定数 ``Float`` handle に wrap する。静的シグネチャは
    # ハンドル型のままにしておくため、デフォルトリテラルが ``Float`` インスタンス
    # でないことを ``# type: ignore`` で許容する。
    theta: qmc.Float = math.pi / 2,  # type: ignore[assignment]
) -> qmc.Qubit:
    return qmc.rx(q, theta)


cg = qmc.control(_phase)

@qmc.qkernel
def default_arg_demo() -> qmc.Bit:
    c = qmc.qubit(name="c")
    t = qmc.qubit(name="t")
    c = qmc.x(c)
    c, t = cg(c, t)  # thetaはデフォルトのmath.pi / 2が入る
    return qmc.measure(t)


default_arg_demo.draw()

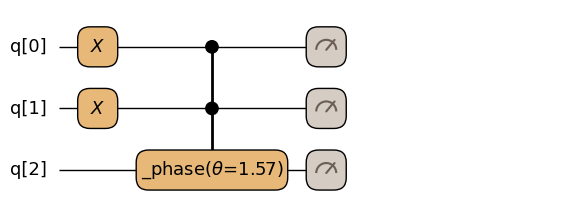

# 同じ`_phase`量子カーネルを、今度はsymbolicな`num_controls=n - 1`で制御化
# します。呼び出し側が`theta`を名指ししなくても`theta=math.pi / 2`の
# デフォルトはそのまま適用されます。別の角度を使いたいがkwargには
# 切り替えたくない場合は、省略した`theta`をcallsiteのpositional上書き
# (`cg(q[0 : n - 1], q[n - 1], math.pi / 4)`)に置き換えます。
@qmc.qkernel
def default_arg_demo_symbolic(n: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(n, "q")
    q[0 : n - 1] = qmc.x(q[0 : n - 1])  # 制御量子ビットを全て|1>にする
    cg = qmc.control(_phase, num_controls=n - 1)  # 制御量子ビット数をsymbolicに指定
    q[0 : n - 1], q[n - 1] = cg(q[0 : n - 1], q[n - 1])
    return qmc.measure(q)


default_arg_demo_symbolic.draw(n=3, fold_loops=False)

cg = qmc.control(qmc.rx)  # num_controls = 1 (concrete)

@qmc.qkernel
def power_demo_concrete() -> qmc.Bit:
    c = qmc.qubit(name="c")
    t = qmc.qubit(name="t")
    c = qmc.x(c)
    c, t = cg(c, t, angle=math.pi / 4, power=3)  # powerはPythonのint
    return qmc.measure(t)


power_demo_concrete.draw()

ccx = qmc.control(qmc.x, num_controls=2)

@qmc.qkernel
def toffoli_demo() -> qmc.Bit:
    c0 = qmc.qubit(name="c0")
    c1 = qmc.qubit(name="c1")
    t = qmc.qubit(name="t")
    c0 = qmc.x(c0)
    c1 = qmc.x(c1)
    c0, c1, t = ccx(c0, c1, t)
    return qmc.measure(t)


toffoli_demo.draw()

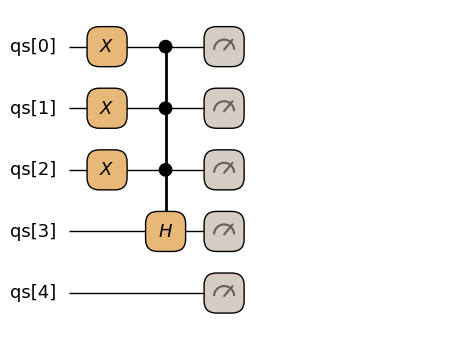

cg = qmc.control(qmc.h, num_controls=3)

@qmc.qkernel
def mixed_controls_demo() -> qmc.Vector[qmc.Bit]:
    qs = qmc.qubit_array(5, "qs")
    qs[0] = qmc.x(qs[0])
    qs[1] = qmc.x(qs[1])
    qs[2] = qmc.x(qs[2])
    qs[0], qs[1:3], qs[3] = cg(qs[0], qs[1:3], qs[3])
    return qmc.measure(qs)


mixed_controls_demo.draw()

cx = qmc.control(qmc.x)  # num_controlsはデフォルトの1(concrete)

@qmc.qkernel
def cnot_demo() -> qmc.Bit:
    c = qmc.qubit(name="c")
    t = qmc.qubit(name="t")
    c = qmc.x(c)  # 制御を|1>に立ててXを発火させる
    c, t = cx(c, t)
    return qmc.measure(t)


cnot_demo.draw()

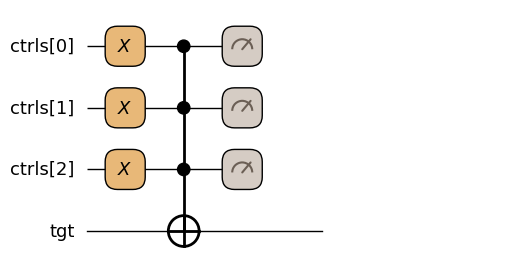

@qmc.qkernel
def symbolic_pool(n: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    ctrls = qmc.qubit_array(n, "ctrls")
    tgt = qmc.qubit(name="tgt")
    ctrls = qmc.x(ctrls)  # 制御を全て|1>にする
    cg = qmc.control(qmc.x, num_controls=n)  # シンボリックなnを制御数に指定
    ctrls, tgt = cg(ctrls, tgt)
    return qmc.measure(ctrls)


symbolic_pool.draw(n=3, fold_loops=False)

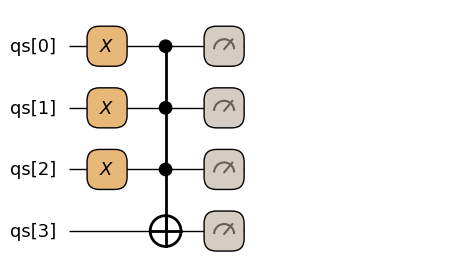

@qmc.qkernel
def mcx_demo(n: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    qs = qmc.qubit_array(n, "qs")
    qs[0 : n - 1] = qmc.x(qs[0 : n - 1])  # 制御部分を全て|1>にする
    mcx = qmc.control(qmc.x, num_controls=n - 1)
    qs[0 : n - 1], qs[n - 1] = mcx(qs[0 : n - 1], qs[n - 1])
    return qmc.measure(qs)


mcx_demo.draw(n=4, fold_loops=False)

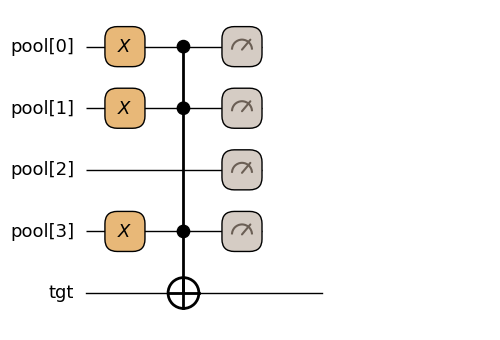

@qmc.qkernel
def subset_pool(n: qmc.UInt, k_ctrls: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    pool = qmc.qubit_array(n, "pool")
    tgt = qmc.qubit(name="tgt")
    pool[0] = qmc.x(pool[0])
    pool[1] = qmc.x(pool[1])
    pool[3] = qmc.x(pool[3])  # pool[2]は|0>のまま。これがinactiveな量子ビット。
    cg = qmc.control(qmc.x, num_controls=k_ctrls)
    pool, tgt = cg(pool, tgt, control_indices=[0, 1, 3])
    return qmc.measure(pool)


subset_pool.draw(n=4, k_ctrls=3)

@qmc.qkernel
def subset_pool_with_uint(n: qmc.UInt, k_ctrls: qmc.UInt) -> qmc.Vector[qmc.Bit]:
    pool = qmc.qubit_array(n, "pool")
    tgt = qmc.qubit(name="tgt")
    pool[0] = qmc.x(pool[0])
    pool[1] = qmc.x(pool[1])
    pool[3] = qmc.x(pool[3])
    cg = qmc.control(qmc.x, num_controls=k_ctrls)
    pool, tgt = cg(pool, tgt, control_indices=[0, 1, n - 1])
    return qmc.measure(pool)


subset_pool_with_uint.draw(n=4, k_ctrls=3)

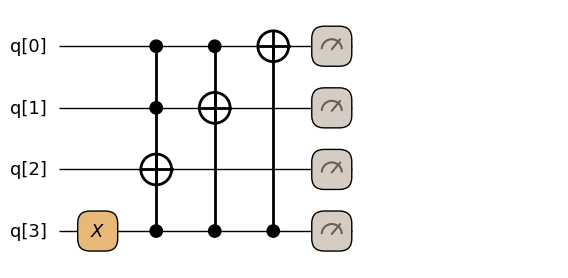

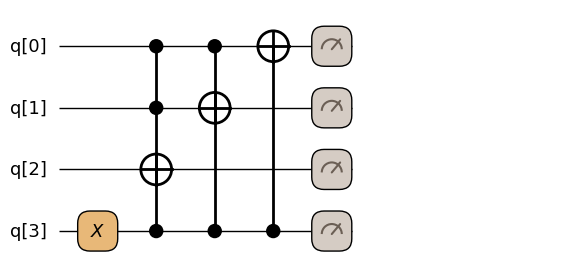

@qmc.qkernel
def controlled_increment_demo(
    n: qmc.UInt, control_index: qmc.UInt
) -> qmc.Vector[qmc.Bit]:
    q = qmc.qubit_array(n, "q")
    q[control_index] = qmc.x(q[control_index])
    # ``q.shape[0]`` は ``int | UInt`` 型なので、`n` パラメータ (狭い
    # ``qmc.UInt``) に再代入すると型が広がる。ローカル名で受ける。
    n_shape = q.shape[0]
    for k in qmc.range(n_shape - 1):
        target_idx = n - 2 - k
        ctrl_main = q[control_index]
        prefix = q[0:target_idx]
        tgt = q[target_idx]
        cg = qmc.control(qmc.x, num_controls=target_idx + 1)
        ctrl_main, prefix, tgt = cg(ctrl_main, prefix, tgt)
        q[control_index] = ctrl_main
        q[0:target_idx] = prefix
        q[target_idx] = tgt
    return qmc.measure(q)


controlled_increment_demo.draw(n=4, control_index=3, fold_loops=False)

def expect_error(label: str, exc_type: type[BaseException], body) -> None:
    """``body``が``exc_type``の例外を投げることをassertします。

    ヘルパは*想定*の例外クラスだけをcatchします。それ以外の
    例外はそのまま伝播するので、別の例外型に変わってしまうような
    regressionはnotebook上で通常のtracebackとして見えます。
    例外が一度も発生しなかった場合は``AssertionError``を投げます。
    """
    try:
        body()
    except exc_type as exc:
        print(f"[{type(exc).__name__}] {label}: {exc}")
        return
    raise AssertionError(
        f"{label}: expected {exc_type.__name__}, but no exception was raised"
    )

def case_count_mismatch() -> None:
    @qmc.qkernel
    def kernel() -> qmc.Bit:
        qs = qmc.qubit_array(6, "qs")
        cg = qmc.control(qmc.x, num_controls=3)
        view, t = cg(qs[0:5], qs[5])  # 5量子ビット渡しているが3expected
        qs[0:5] = view
        return qmc.measure(qs[5])

    _ = kernel.block


expect_error("control count mismatch", ValueError, case_count_mismatch)

def case_control_indices_in_concrete() -> None:
    @qmc.qkernel
    def kernel() -> qmc.Bit:
        c = qmc.qubit(name="c")
        t = qmc.qubit(name="t")
        cg = qmc.control(qmc.x)  # num_controlsはデフォルトの1 (concrete)
        c, t = cg(c, t, control_indices=[0])
        return qmc.measure(t)

    _ = kernel.block


expect_error(
    "control_indices in concrete mode",
    ValueError,
    case_control_indices_in_concrete,
)

def case_symbolic_view_in_concrete() -> None:
    @qmc.qkernel
    def kernel(m: qmc.UInt) -> qmc.Bit:
        qs = qmc.qubit_array(m, "qs")
        cg = qmc.control(qmc.x, num_controls=3)
        view, q_out = cg(qs[0:m], qs[m - 1])
        qs[0:m] = view
        qs[m - 1] = q_out
        return qmc.measure(qs[m - 1])

    _ = kernel.block


expect_error(
    "symbolic-length VectorView in concrete mode",
    NotImplementedError,
    case_symbolic_view_in_concrete,
)

def case_pool_slot_as_target() -> None:
    @qmc.qkernel
    def kernel(n: qmc.UInt, k_ctrls: qmc.UInt) -> qmc.Vector[qmc.Bit]:
        pool = qmc.qubit_array(n, "pool")
        cg = qmc.control(qmc.x, num_controls=k_ctrls)
        pool, q = cg(pool, pool[2], control_indices=[0, 1, 3])
        pool[2] = q
        return qmc.measure(pool)

    _ = kernel.block


expect_error(
    "same-pool slot reused as target",
    UnreturnedBorrowError,
    case_pool_slot_as_target,
)

def case_multi_arg_with_control_indices() -> None:
    @qmc.qkernel
    def kernel(n: qmc.UInt, k: qmc.UInt) -> qmc.Vector[qmc.Bit]:
        q = qmc.qubit_array(n, "q")
        ctrl_main = q[0]
        prefix = q[1:k]
        tgt = q[k]
        cg = qmc.control(qmc.x, num_controls=k + 1)
        ctrl_main, prefix, tgt = cg(ctrl_main, prefix, tgt, control_indices=[0, 1, 2])
        q[0] = ctrl_main
        q[1:k] = prefix
        q[k] = tgt
        return qmc.measure(q)

    _ = kernel.block


expect_error(
    "multi-arg + control_indices",
    ValueError,
    case_multi_arg_with_control_indices,
)

def case_single_scalar_control_symbolic() -> None:
    @qmc.qkernel
    def kernel(n: qmc.UInt) -> qmc.Bit:
        c = qmc.qubit(name="c")
        t = qmc.qubit(name="t")
        cg = qmc.control(qmc.rx, num_controls=n)
        c, t = cg(c, t, angle=math.pi)
        return qmc.measure(t)

    _ = kernel.block


expect_error(
    "single scalar control in symbolic mode",
    ValueError,
    case_single_scalar_control_symbolic,
)

def case_controlled_qft_over_uint_slice() -> None:
    @qmc.qkernel
    def qft_prefix(q: qmc.Vector[qmc.Qubit], m: qmc.UInt) -> qmc.Vector[qmc.Qubit]:
        prefix = q[:m]
        prefix = qmc.qft(prefix)
        q[:m] = prefix
        return q

    @qmc.qkernel
    def kernel(n: qmc.UInt) -> qmc.Vector[qmc.Bit]:
        q = qmc.qubit_array(n + 1, "q")
        q[0] = qmc.x(q[0])
        controlled_qft = qmc.control(qft_prefix)
        q[0], targets = controlled_qft(q[0], q[1 : n + 1], n)
        q[1 : n + 1] = targets
        return qmc.measure(q)

    transpiler.transpile(kernel, bindings={"n": 2})


case_controlled_qft_over_uint_slice()
