ハイブリッド量子ニューラルネットワーク (HQNN)

import math
import os

import numpy as np
import torch
import torch.nn as nn
import matplotlib.pyplot as plt
from torchvision import datasets, transforms

import qamomile.circuit as qmc
from qamomile.circuit.algorithm import ry_layer, rz_layer, cz_entangling_layer
import qamomile.observable as qmo
from qamomile.qiskit import QiskitTranspiler

docs_test_mode = os.environ.get("QAMOMILE_DOCS_TEST") == "1"

N_QUBITS = 4
N_LAYERS = 2
N_WEIGHTS_PER_LAYER = N_QUBITS * 3  # 各量子ビットに RZ, RY, RZ
N_WEIGHTS = N_LAYERS * N_WEIGHTS_PER_LAYER

print(f"量子ビット数: {N_QUBITS}, 層数: {N_LAYERS}, 学習パラメータ数: {N_WEIGHTS}")
assert N_QUBITS == 4
assert N_LAYERS == 2
# N_WEIGHTS = N_LAYERS * N_QUBITS * 3(1層あたり量子ビットごとに RZ + RY + RZ)。
assert N_WEIGHTS == 24

@qmc.qkernel
def variational_ansatz(
    n_qubits: qmc.UInt,
    n_layers: qmc.UInt,
    inputs: qmc.Vector[qmc.Float],
    weights: qmc.Vector[qmc.Float],
    hamiltonian: qmc.Observable,
) -> qmc.Float:
    q = qmc.qubit_array(n_qubits, name="q")

    # 角度エンコーディング: 古典特徴量を RY 回転で埋め込み
    for i in qmc.range(n_qubits):
        q[i] = qmc.ry(q[i], inputs[i])

    # stdlib の層関数を使った変分層
    for layer_idx in qmc.range(n_layers):
        base = layer_idx * n_qubits * 3
        q = rz_layer(q, weights, base)
        q = ry_layer(q, weights, base + n_qubits)
        q = rz_layer(q, weights, base + n_qubits * 2)
        q = cz_entangling_layer(q)

    return qmc.expval(q, hamiltonian)

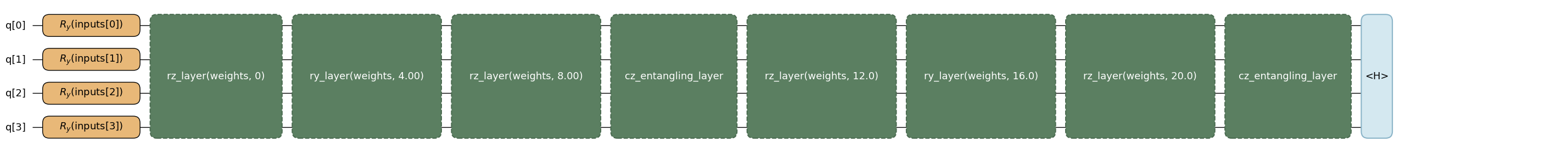

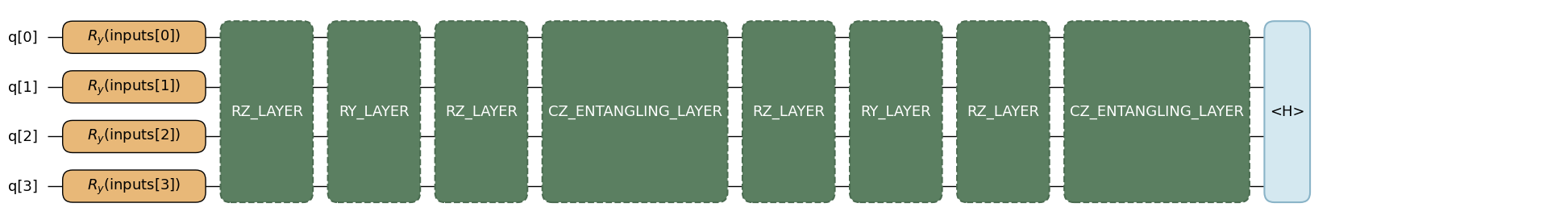

variational_ansatz.draw(
    n_qubits=N_QUBITS,
    n_layers=N_LAYERS,
    hamiltonian=qmo.Z(0),
    fold_loops=False,
    inline=False,
)

observables = []
for i in range(N_QUBITS):
    obs = qmo.Hamiltonian(num_qubits=N_QUBITS)
    obs.add_term((qmo.PauliOperator(qmo.Pauli.Z, i),), 1.0)
    observables.append(obs)

transpiler = QiskitTranspiler()

executables = [
    transpiler.transpile(
        variational_ansatz,
        bindings={"n_qubits": N_QUBITS, "n_layers": N_LAYERS, "hamiltonian": obs},
        parameters=["inputs", "weights"],
    )
    for obs in observables
]

est = variational_ansatz.estimate_resources(
    bindings={"n_qubits": N_QUBITS, "n_layers": N_LAYERS},
)
print(est)
assert est.qubits == 4
# 入力 RY 4 + 2 層 * (RZ 4 + RY 4 + RZ 4) = 1-qubit 回転 28 個。
assert est.gates.single_qubit == 28
# 2 層 * 3 CZ(4 量子ビット線形チェーン)= 2-qubit Clifford 6 個。
assert est.gates.two_qubit == 6
assert est.gates.total == 34
assert est.gates.rotation_gates == 28

executor = transpiler.executor()


def quantum_forward(input_vals: np.ndarray, weight_vals: np.ndarray) -> np.ndarray:
    """各量子ビットの <Z_i> を評価する。

    Args:
        input_vals: 特徴量の値、shape (N_QUBITS,)。
        weight_vals: 学習可能な重み、shape (N_WEIGHTS,)。

    Returns:
        期待値、shape (N_QUBITS,)。
    """
    runtime_bindings = {
        "inputs": list(input_vals),
        "weights": list(weight_vals),
    }
    return np.array(
        [exe.run(executor, bindings=runtime_bindings).result() for exe in executables],
        dtype=float,
    )

# 動作テスト: ランダムな入力と重み
rng = np.random.default_rng(42)
test_inputs = rng.uniform(-np.pi, np.pi, N_QUBITS)
test_weights = rng.uniform(-np.pi, np.pi, N_WEIGHTS)

expvals = quantum_forward(test_inputs, test_weights)
print("期待値:", expvals)
# Z の期待値は [-1, 1]、量子ビット 1 個に 1 値。
assert expvals.shape == (N_QUBITS,)
assert all(-1.0 <= float(e) <= 1.0 for e in expvals)

SHIFT = math.pi / 2


class QuantumFunction(torch.autograd.Function):
    """PyTorch と量子回路を橋渡しするカスタム autograd 関数。"""

    @staticmethod
    def forward(ctx, inputs: torch.Tensor, weights: torch.Tensor) -> torch.Tensor:
        ctx.save_for_backward(inputs, weights)
        # バッチ内の各サンプルに対して回路を評価
        batch_results = []
        weights_np = weights.detach().cpu().numpy()
        for inp in inputs:
            expvals = quantum_forward(inp.detach().cpu().numpy(), weights_np)
            batch_results.append(expvals)
        return torch.tensor(np.array(batch_results), dtype=inputs.dtype, device=inputs.device)

    @staticmethod
    def backward(ctx, grad_output: torch.Tensor) -> tuple[torch.Tensor, torch.Tensor]:
        inputs, weights = ctx.saved_tensors
        weights_np = weights.detach().cpu().numpy().copy()

        grad_inputs = torch.zeros_like(inputs)
        grad_weights = torch.zeros(weights.shape[0], dtype=weights.dtype, device=weights.device)

        for b, inp in enumerate(inputs):
            inp_np = inp.detach().cpu().numpy().copy()
            g_out = grad_output[b].detach().cpu().numpy()  # shape (N_QUBITS,)

            # 重みに関する勾配（コピー回避のためインプレースシフト）
            for k in range(len(weights_np)):
                weights_np[k] += SHIFT
                fwd_plus = quantum_forward(inp_np, weights_np)
                weights_np[k] -= 2 * SHIFT
                fwd_minus = quantum_forward(inp_np, weights_np)
                weights_np[k] += SHIFT  # 元の値に復元

                param_grad = (fwd_plus - fwd_minus) / 2.0  # shape (N_QUBITS,)
                grad_weights[k] += np.dot(g_out, param_grad)

            # 入力に関する勾配（コピー回避のためインプレースシフト）
            for k in range(len(inp_np)):
                inp_np[k] += SHIFT
                fwd_plus = quantum_forward(inp_np, weights_np)
                inp_np[k] -= 2 * SHIFT
                fwd_minus = quantum_forward(inp_np, weights_np)
                inp_np[k] += SHIFT  # 元の値に復元

                input_grad = (fwd_plus - fwd_minus) / 2.0
                grad_inputs[b, k] = np.dot(g_out, input_grad)

        return grad_inputs, grad_weights

class QLayer(nn.Module):
    """Qamomile 変分回路をラップする PyTorch モジュール。"""

    def __init__(self, n_weights: int):
        super().__init__()
        self.weights = nn.Parameter(torch.randn(n_weights) * 0.1)

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        return QuantumFunction.apply(x, self.weights)

N_CLASSES = 4
SELECTED_CLASSES = [0, 1, 5, 8]  # T-shirt, Trouser, Sandal, Bag
CLASS_NAMES = ["T-shirt", "Trouser", "Sandal", "Bag"]
N_TRAIN_PER_CLASS = 2 if docs_test_mode else 60
N_TEST_PER_CLASS = 2 if docs_test_mode else 30

transform = transforms.Compose([
    transforms.ToTensor(),
    transforms.Normalize((0.2860,), (0.3530,)),
])

# 永続キャッシュディレクトリを使用（再ダウンロードを回避）
_data_root = os.path.join(os.path.expanduser("~"), ".cache", "fashion_mnist")
full_train = datasets.FashionMNIST(
    root=_data_root, train=True, download=True, transform=transform
)
full_test = datasets.FashionMNIST(
    root=_data_root, train=False, download=True, transform=transform
)


def subset_dataset(dataset, classes, n_per_class):
    """指定クラスからランダムにサブセットを抽出する。"""
    images, labels = [], []
    rng_data = np.random.default_rng(0)
    # dataset.targets でインデックスを取得（全画像のロード・変換を回避）
    targets = dataset.targets
    if isinstance(targets, torch.Tensor):
        targets = targets.numpy()
    else:
        targets = np.array(targets)
    for new_label, orig_label in enumerate(classes):
        class_indices = np.where(targets == orig_label)[0]
        chosen = rng_data.choice(class_indices, size=n_per_class, replace=False)
        for idx in chosen:
            img, _ = dataset[int(idx)]
            images.append(img)
            labels.append(new_label)
    return torch.stack(images), torch.tensor(labels)


X_train, y_train = subset_dataset(full_train, SELECTED_CLASSES, N_TRAIN_PER_CLASS)
X_test, y_test = subset_dataset(full_test, SELECTED_CLASSES, N_TEST_PER_CLASS)

print(f"訓練データ: {X_train.shape}, テストデータ: {X_test.shape}")
# 4 クラス × N_PER_CLASS サンプル; Fashion-MNIST は 1x28x28 グレースケール。
assert X_train.shape == (N_CLASSES * N_TRAIN_PER_CLASS, 1, 28, 28)
assert X_test.shape == (N_CLASSES * N_TEST_PER_CLASS, 1, 28, 28)
print(f"クラス: {CLASS_NAMES}")

class EndToEndHybridHQNN(nn.Module):
    """
    end-to-end 用のハイブリッドモデル（最初から全体を学習）。
    画像 -> CNN特徴 -> 量子層 -> 分類器

    分類器には [古典特徴, 量子出力] を両方入れる fusion 構造。
    CNN と量子層が最初から協調して学習する。
    """

    def __init__(self, n_qubits: int, n_weights: int, n_classes: int):
        super().__init__()
        self.feature_extractor = nn.Sequential(
            nn.Conv2d(1, 4, 3, padding=1), nn.ReLU(), nn.MaxPool2d(2),
            nn.Conv2d(4, 4, 3, padding=1), nn.ReLU(), nn.MaxPool2d(2),
            nn.Flatten(),
            nn.Linear(7 * 7 * 4, n_qubits),
        )
        self.qlayer = QLayer(n_weights)
        self.classifier = nn.Linear(n_qubits * 2, n_classes)

    def forward(self, x: torch.Tensor):
        # CNN特徴を量子層入力の角度へ
        feats = math.pi * torch.sigmoid(self.feature_extractor(x))   # shape: (B, N_QUBITS)
        q_out = self.qlayer(feats)                                   # shape: (B, N_QUBITS)

        fused = torch.cat([feats, q_out], dim=1)                     # shape: (B, 2*N_QUBITS)
        logits = self.classifier(fused)
        return logits, feats, q_out


EPOCHS = 2 if docs_test_mode else 10
BATCH_SIZE = 4

torch.manual_seed(42)
hybrid_model = EndToEndHybridHQNN(N_QUBITS, N_WEIGHTS, N_CLASSES)

optimizer = torch.optim.Adam(hybrid_model.parameters(), lr=0.001)
criterion = nn.CrossEntropyLoss()

train_losses = []
test_accs = []

print(f"=== End-to-End 学習 ({EPOCHS} エポック) ===")
for epoch in range(EPOCHS):
    perm = torch.randperm(len(X_train))
    X_shuf, y_shuf = X_train[perm], y_train[perm]

    epoch_loss = 0.0
    total = 0

    for i in range(0, len(X_shuf), BATCH_SIZE):
        xb = X_shuf[i : i + BATCH_SIZE]
        yb = y_shuf[i : i + BATCH_SIZE]

        optimizer.zero_grad()
        logits, feats, q_out = hybrid_model(xb)
        loss = criterion(logits, yb)
        loss.backward()
        optimizer.step()

        epoch_loss += loss.item()
        total += len(yb)

    avg_loss = epoch_loss / max(1, math.ceil(total / BATCH_SIZE))
    train_losses.append(avg_loss)

    with torch.no_grad():
        test_logits, _, _ = hybrid_model(X_test)
        test_acc = (test_logits.argmax(1) == y_test).float().mean().item()
        test_accs.append(test_acc)

    print(f"  エポック {epoch + 1}/{EPOCHS}  損失={avg_loss:.4f}  テスト精度={test_acc:.2%}")

# 勾配が CNN と量子層の両方に流れているか確認
xb = X_train[:BATCH_SIZE]
yb = y_train[:BATCH_SIZE]

optimizer.zero_grad()
logits, feats, q_out = hybrid_model(xb)
loss = criterion(logits, yb)
loss.backward()

# ``loss.backward()`` で ``.grad`` が populate されるので、torch の stub で
# ``Tensor | None`` と宣言された ``.grad`` を ``assert`` で narrow する。
# ``nn.Sequential.__getitem__`` は torch の stub 上 ``Tensor | None | Module``
# を返す (整数 index と slice の両方を受けるため) ので、まず ``nn.Module`` に
# narrow してから ``.weight`` を取り出す。
first_conv = hybrid_model.feature_extractor[0]
assert isinstance(first_conv, torch.nn.Module)
first_conv_weight = first_conv.weight  # type: ignore[union-attr]
assert first_conv_weight.grad is not None
quantum_grad = hybrid_model.qlayer.weights.grad
assert quantum_grad is not None
print(
    "feature_extractor first conv grad mean:",
    # zuban は stub 上 Tensor の ``.grad.abs()`` チェーンを "Tensor not
    # callable" と判定するが、runtime 側は通常の ``Tensor.abs`` メソッド呼び出し。
    first_conv_weight.grad.abs().mean().item(),  # type: ignore[operator]
)
print("quantum weights grad mean:",
      quantum_grad.abs().mean().item())

optimizer.zero_grad()

with torch.no_grad():
    q_logits, F_test_e2e, q_outputs = hybrid_model(X_test)
    preds = q_logits.argmax(1)
    quantum_acc = (preds == y_test).float().mean().item()

print(f"end-to-end 量子モデルの精度: {quantum_acc:.2%}")
print()

for c in range(N_CLASSES):
    mask = y_test == c
    class_acc = (preds[mask] == y_test[mask]).float().mean().item()
    print(f"  {CLASS_NAMES[c]}: {class_acc:.2%}")

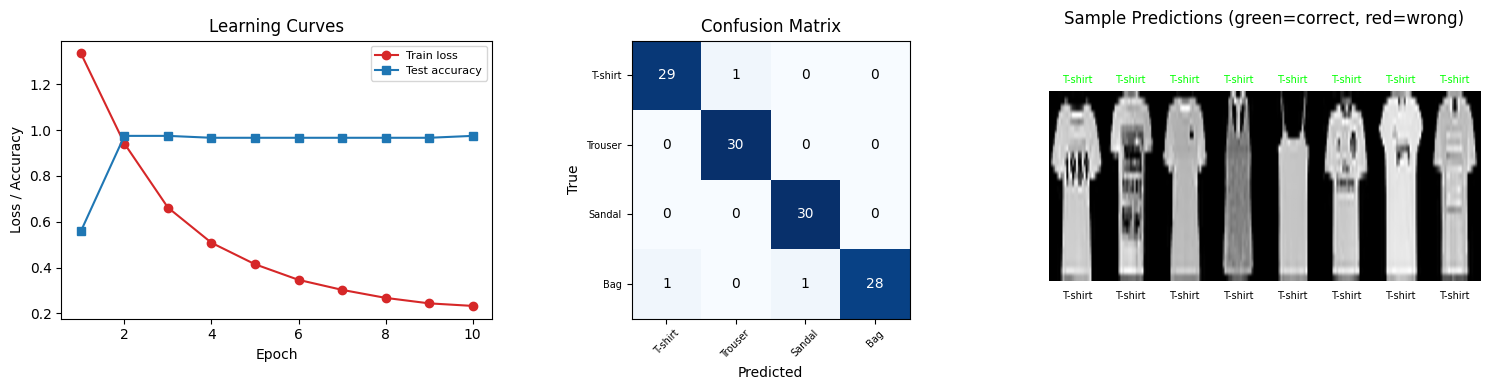

fig, axes = plt.subplots(1, 3, figsize=(15, 4))

# (a) Learning curves
ax = axes[0]
epochs_range = range(1, EPOCHS + 1)
ax.plot(epochs_range, train_losses, "o-", color="C3", label="Train loss")
ax.plot(epochs_range, test_accs, "s-", color="C0", label="Test accuracy")
ax.set_xlabel("Epoch")
ax.set_ylabel("Loss / Accuracy")
ax.set_title("Learning Curves")
ax.legend(fontsize=8)

# (b) Confusion matrix
conf = np.zeros((N_CLASSES, N_CLASSES), dtype=int)
for t, p in zip(y_test.numpy(), preds.numpy()):
    conf[t, p] += 1
axes[1].imshow(conf, cmap="Blues")
axes[1].set_xlabel("Predicted")
axes[1].set_ylabel("True")
axes[1].set_title("Confusion Matrix")
axes[1].set_xticks(range(N_CLASSES))
axes[1].set_yticks(range(N_CLASSES))
axes[1].set_xticklabels(CLASS_NAMES, fontsize=7, rotation=45)
axes[1].set_yticklabels(CLASS_NAMES, fontsize=7)
for i in range(N_CLASSES):
    for j in range(N_CLASSES):
        axes[1].text(
            j, i, str(conf[i, j]), ha="center", va="center",
            color="white" if conf[i, j] > conf.max() / 2 else "black",
        )

# (c) Sample images with predictions
n_show = min(8, len(X_test))
sample_imgs = X_test[:n_show, 0].numpy()
combined = np.concatenate(sample_imgs, axis=1)
axes[2].imshow(combined, cmap="gray", aspect="auto")
for i in range(n_show):
    color = "lime" if preds[i] == y_test[i] else "red"
    axes[2].text(
        28 * i + 14, -1.5,
        CLASS_NAMES[preds[i].item()],
        ha="center", va="bottom", fontsize=7, color=color,
        clip_on=False,
    )
    # ``Tensor.item()`` は torch の stub 上は ``int | float | bool`` を返す
    # ことになっていて、整数型 tensor でも狭い型に narrow されない。実行時の
    # 値は常に ``int`` のクラスラベルなので、リスト index 用に明示 cast する。
    axes[2].text(
        28 * i + 14, 29,
        CLASS_NAMES[int(y_test[i].item())],
        ha="center", va="top", fontsize=7,
        clip_on=False,
    )
axes[2].set_ylim(33, -8)
axes[2].set_title("Sample Predictions (green=correct, red=wrong)", pad=12)
axes[2].axis("off")

plt.tight_layout()
plt.show()
